Framing a door opening requires a level header, straight side supports and a rough opening sized for the complete door frame plus installation clearance. The opening must carry surrounding loads without transferring damaging pressure to the door. An OEM/ODM manufacturer of custom door and frame systems needs the finished wall dimensions before production begins.

Check Whether the Wall Is Load-Bearing

This is the first decision, not the header size.

Removing or cutting structural framing without understanding the load path can damage the building. When the wall is load-bearing, a qualified builder, engineer or local authority should determine:

• Temporary support requirements

• Header construction

• Stud quantity

• Fasteners

• Structural connections

• Applicable building code

The following steps describe general door-opening principles and do not replace a project-specific structural design.

Step 1: Obtain the Actual Door-System Dimensions

Do not frame the opening from the nominal door-leaf size alone.

The required opening depends on:

• Door-leaf width and height

• Frame outside dimensions

• Threshold

• Head clearance

• Side installation gaps

• Finished floor level

• Wall thickness

• Interior and exterior finishes

A 1,000 mm door leaf does not automatically require a 1,000 mm rough opening because the frame and installation clearance also occupy space.

Step 2: Mark the Opening From the Finished Floor

Use the final floor reference rather than an unfinished slab when possible.

Floor tile, stone, wood and leveling layers can raise the finished surface. Failing to include them may leave insufficient clearance below the door.

Mark:

• Left and right opening edges

• Header height

• Finished floor line

• Door swing direction

• Interior and exterior sides

Step 3: Build the Side Supports

A typical framed opening includes full-height supporting members and shorter members that carry the header. Terminology and construction vary between timber, light-gauge steel, masonry and concrete buildings.

Both sides must be straight and capable of accepting the required frame anchors.

Measure the opening width at the top, middle and bottom. Significant differences indicate that the sides are not parallel.

Step 4: Install the Header

The header spans the opening and transfers the load above it to the sides. Its material and size depend on:

• Opening width

• Building structure

• Load above the door

• Wall construction

• Local code

The header must not rest on or transfer building load directly to a non-structural door frame.

Step 5: Confirm the Rough Opening

Before wall finishes are completed, check:

1. Width at three heights

2. Height at both sides and the centre

3. Diagonal measurements

4. Side plumb

5. Header level

6. Wall thickness

7. Finished-floor allowance

Equal diagonals help indicate a square opening, but plumb and level must still be checked separately.

Step 6: Prepare Anchor Locations

Heavy steel, stainless steel and aluminum entrance doors may need anchors at defined frame positions. The wall must provide suitable fixing points.

Do not place electrical cables, plumbing or weak hollow areas where structural frame anchors are expected.

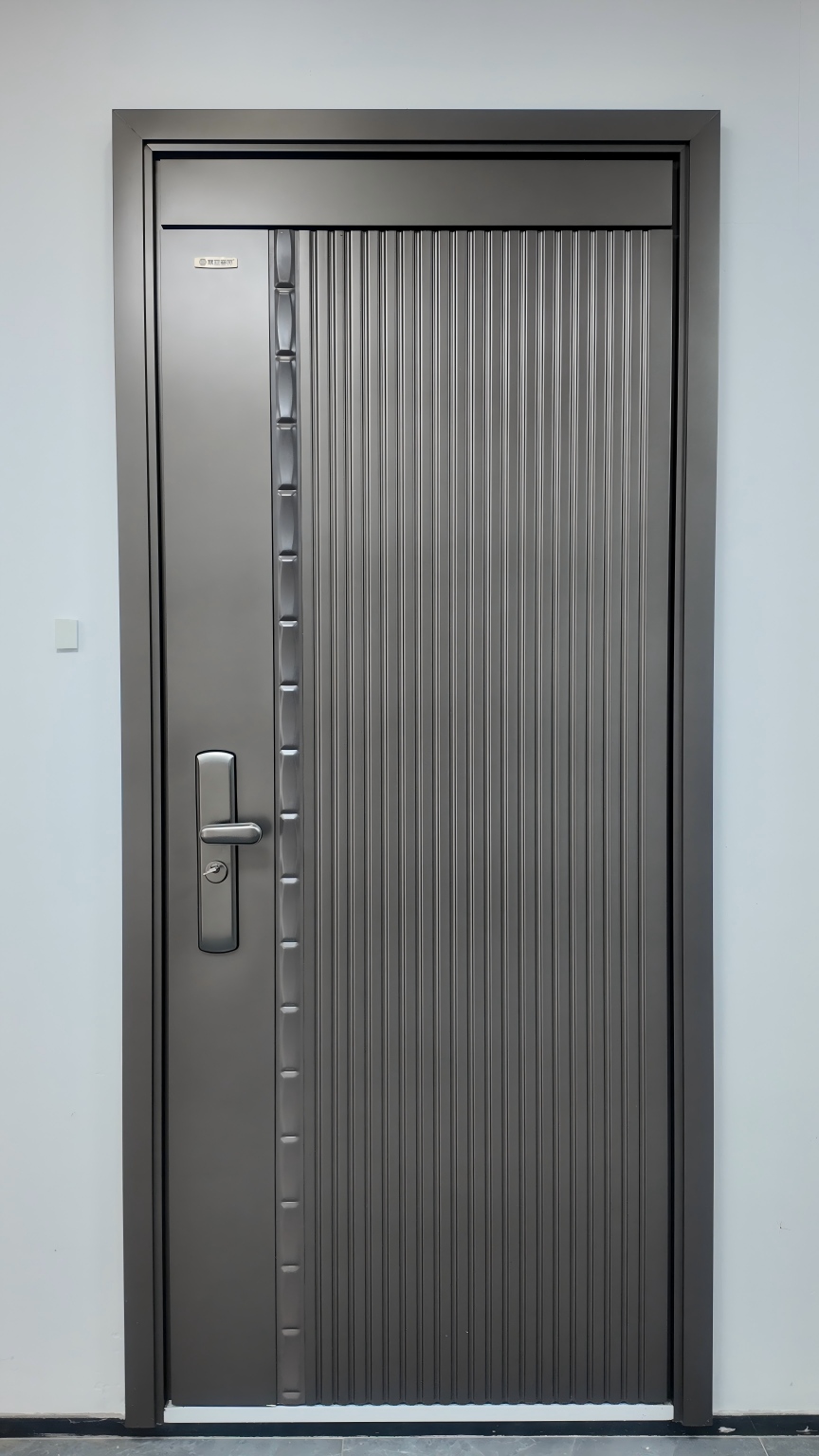

Our front entrance steel doors use a coordinated door leaf and frame intended for integrated installation. The exact fixing arrangement should follow the approved door drawing.

Why Non-Standard Doors Need Earlier Coordination

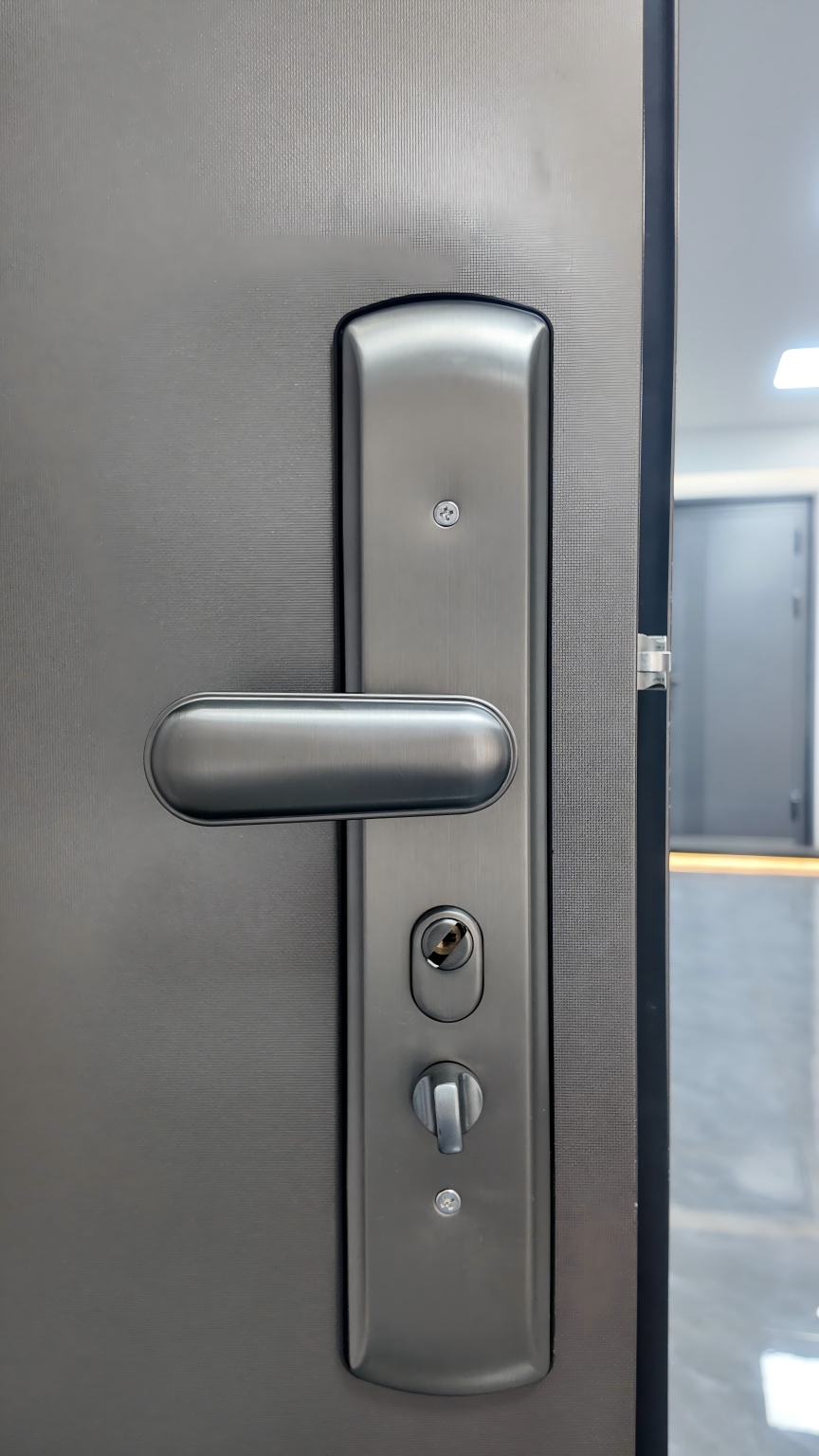

As an OEM/ODM manufacturer of custom door and frame systems, we can adapt door size, frame width, opening direction, panel design, hardware and locking configuration.

These choices affect the wall opening. A pivot door, oversized double door and standard hinged entrance door may require different structural preparation.

Our automated laser-sheet processing and integrated production planning support non-standard manufacturing, but the project must provide accurate information. The door should not be manufactured from an approximate site measurement.

Release the Door for Production Only After Verification

Prepare a signed opening schedule showing the structural opening, finished opening, wall thickness, floor level and handing for every door type.

Send us your drawings for a door-frame compatibility check. Our OEM/ODM manufacturer of custom door and frame systems can then prepare the corresponding production dimensions.
