To shim a door hinge, loosen the hinge screws and place a thin, firm shim behind the hinge leaf to move the door’s position. Shimming the entire hinge moves that section of the door toward the opposite jamb, while partial shimming can alter the hinge angle. Small adjustments are essential on heavy doors supplied by a reliable export supplier of custom steel Security Doors.

First Confirm That the Hinge Needs a Shim

A hinge shim is appropriate only when the frame is secure and the hinge position needs a small correction.

Do not add a shim before checking for:

• Loose hinge screws

• Stripped screw holes

• Bent hinge leaves

• Worn hinge pins

• A sagging or twisted frame

• Debris behind the hinge

• Incorrect hinge recess depth

• Structural movement in the opening

Tightening a loose screw may solve the problem without changing the geometry.

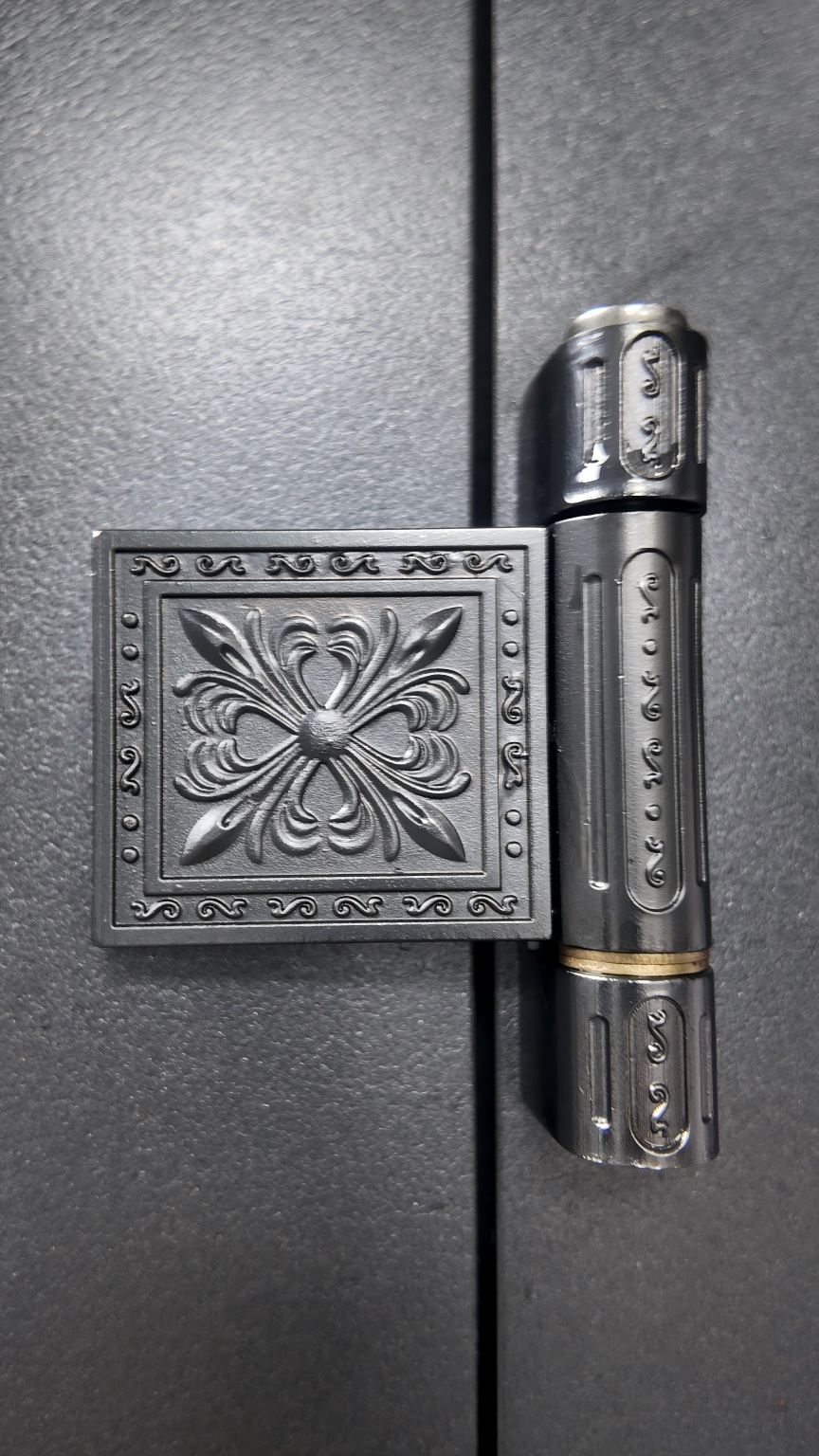

Understand What Each Hinge Controls

The top hinge has a strong influence on the upper lock-side corner of the door. It carries substantial leverage from the weight of the door leaf.

The bottom hinge affects the lower alignment and helps control the vertical plane of the door.

The middle hinge supports load distribution and reduces movement between the upper and lower positions.

This is why shimming every hinge by the same amount may move the complete door without correcting the original problem.

When to Shim the Top Hinge

Consider a thin shim behind the top hinge when the top of the door needs to move away from the hinge jamb and toward the lock side.

However, a door that sags at the top lock-side corner may first need longer or properly secured hinge screws. Adding unnecessary thickness can make the gap worse.

Test one small change at a time.

When to Shim the Bottom Hinge

A bottom-hinge shim can move the lower part of the door toward the lock side. This may influence a diagonal gap or lower-corner contact.

Close the door after every adjustment and inspect the complete perimeter. Correcting the bottom corner can also change the latch alignment above it.

Full Shims and Partial Shims Are Different

A full shim sits behind the complete hinge leaf and moves that hinge position outward.

A partial shim is placed behind only one edge of the hinge leaf. It changes the hinge angle rather than simply moving it parallel to the frame.

Partial shimming is more sensitive. Excess thickness can twist the hinge, create binding or place uneven stress on the screws.

Choose a Stable Shim Material

Use a thin material that does not compress easily or absorb moisture. Purpose-made plastic or metal hinge shims provide more predictable thickness than folded paper or soft cardboard.

The shim should:

• Sit flat

• Remain within the hinge recess

• Avoid blocking screw holes

• Support the hinge evenly

• Resist movement during tightening

Improvised material can compress over time and allow the alignment problem to return.

A Controlled Hinge-Shimming Method

1. Support the weight of the door.

2. Mark the current hinge position.

3. Loosen the screws carefully.

4. Insert one thin shim.

5. Retighten the screws evenly.

6. Remove the door support.

7. Operate the door slowly.

8. Check gaps and lock engagement.

9. Repeat only if necessary.

Never allow a large metal entrance door to hang from one partly secured hinge.

Why Heavy Security Doors Need Greater Caution

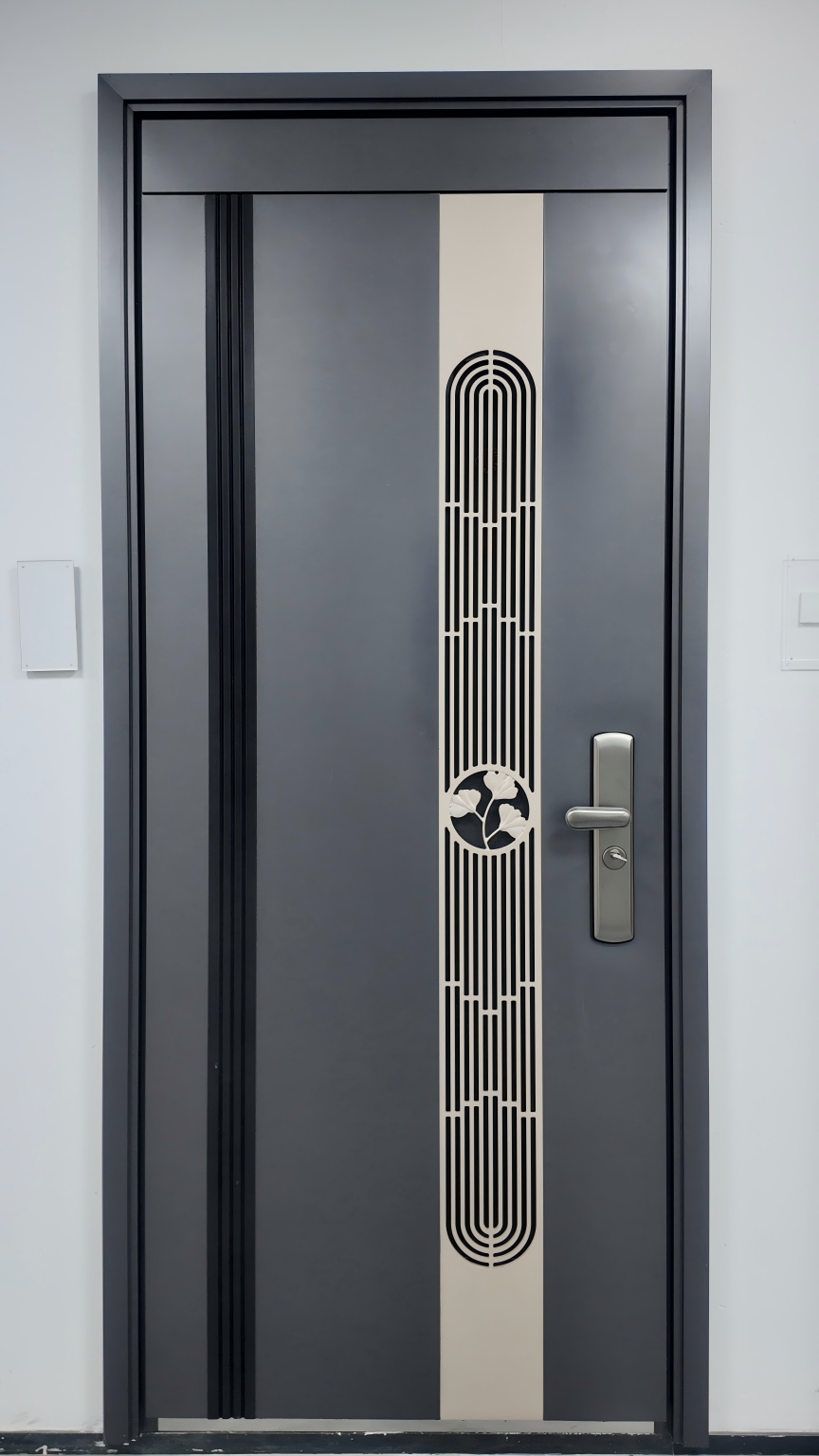

Our high-security stainless steel front doors use reinforced construction, substantial door leaves and multi-point locking systems.

A minor hinge movement can affect several lock points at once. Excessive shimming can also reduce hinge support or move the leaf against the weather seals.

For products from a reliable export supplier of custom steel security doors, installers should use the approved hinge quantity, hinge type, screw specification and frame fixing method.

Factory Preparation Reduces On-Site Correction

We produce customized steel, stainless steel, aluminum and armored entrance doors with matching frames and prepared hardware positions.

Laser cutting, automated forming and ERP-managed production help maintain the confirmed hinge and lock locations across repeat units. Pre-shipment inspection can identify manufacturing alignment issues before the order leaves the factory.

Installation shims remain useful because walls and openings are rarely perfect, but they should provide final adjustment—not compensate for inaccurate ordering information.

Submit the Alignment Symptoms, Not Just “The Door Sags”

Send photographs of all four door gaps, the hinge positions, lock side, threshold and frame anchors. Include the door dimensions and explain where contact occurs.

This information helps distinguish a hinge issue from a frame or opening problem.

Contact our technical team for door-system information when working with products from our reliable export supplier of custom steel security doors.
